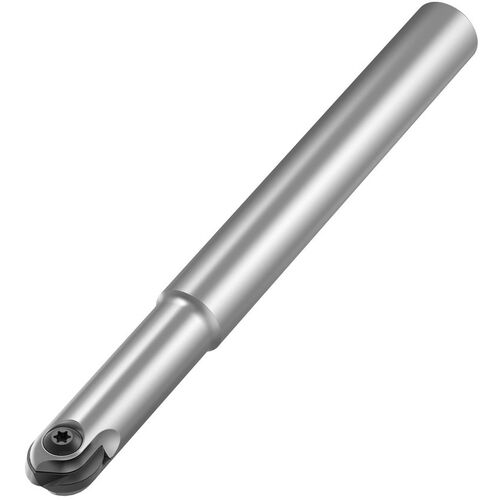

KDMB0750R630A075SN DIE & MOLD - KDMB
| Cutting Diameter (DC/DCX) | 0.709″ | Shank Type | Round |
| Cutting Diameter (DC) | 0.709″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1.753″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Cutting Edge Angle (KAPR) | 0 Degrees |
| Overall Length (OAL) | 6.28″ | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •Cutting diameter ranges from .375-1.250″. •Ball nose finishers for 3-dimensional milling applications. •Suitable for roughing and finishing operations. | Country of Origin | USA |
Shipping Info
Package Weight
.8800
