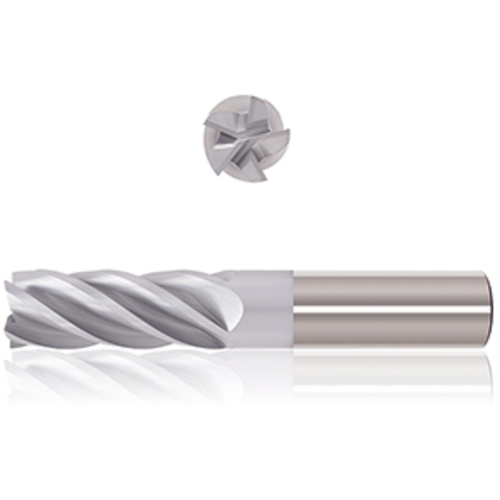

5 Flute End Mill for Finishing, Variable Pitch Center Cutting, 35° Helix, Traditional Milling For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 3/8″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1″ | Grade | H5008 Exxtral Silver |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | AITiCrN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Series/List # | 558 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | 5 Flute End Mill for Finishing, Variable Pitch Center Cutting, 35° Helix, Traditional Milling For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
