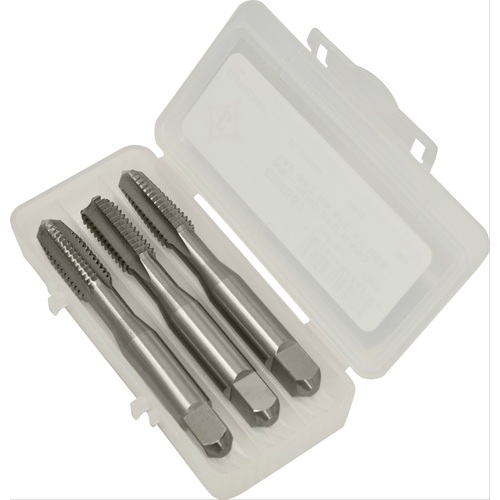

#5-40 UNC 3 Flute H2 HSS Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
| Thread Diameter Size (TDZ) | #5 | Overall Length (OAL) | 1.94″ |
| Thread Standard | NC | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Threads per Inch (TPI) | 40 | Flute Count (NOF) | 3 |
| Flute Type | Straight | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | H2 | Quantity | 3 |
| Style | Taper|Plug|Bottoming | Application | General Purpose |
| Tool Type | Hand Taps | Measurement Type | Inch |
| Shank Type | Round w/ Drive Square | Series/List # | 1004 |
| Flute Length | 5/8″ | Thread Cutting Part Length (THL) | 0.31″ |
| Cutting Direction (HAND) | Right Hand | Thread Size | #5 - 40 |
| Coating | Uncoated |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.035
